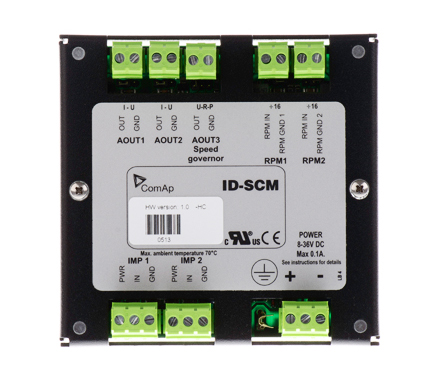

ID-SCM

Speed Control Module

产品型号: ID-SCM

Interface module for InteliDrive DCU Industrial, InteliDrive CCU and InteliDrive DCU Marine controllers for full support of internal PLC (programmable logic) in wide range of applications
Module is mounted directly on the controller body
Inputs and outputs:
- RPM1, RPM2: inputs for frequency measuring - up to 8 kHz
- IMP1, IMP2: inputs for integral (consumption) measuring up to 60 Hz
- AOUT1, AOUT2: analog outputs 0 - 10VDC or 0 - 20 mA
- Speed Governor Output: ±10VDC or ±10VDC via 10kΩ or PWM (1,6kHz )
UL certified
