InteliVision 18Touch G2

产品描述

新型InteliVision 18Touch G2 是InteliVision 18Touch 的后续产品。它设计成基于 Windows 的面板，使用方便，适用于监控各种 ComAp 控制器。InteliVision 18Touch G2 配备 18.5 英寸投射电容式触摸屏，分辨率为 1920x1080 像素。其正面防护符合 IP66 标准，工作温度范围为 -20 °C 至 +60 °C。强大的英特尔处理器可确保流畅运行。它配备了 ComAp PC 监控工具 InteliSCADA。兼容的控制器可通过两个以太网端口之一或 RS232/RS485 与 InteliVision 18Touch G2 连接。

关键特性

• 支持 M1 平台上的新控制器

• 预装 ComAp InteliSCADA 工具

• 符合 IP66 标准的前面板

• 强大的英特尔® 第六代英特尔酷睿 i3 处理器

• 8 GB 内存，80 GB SSD（iSLC）

• 2 x 以太网，2 x USB 3.0 A 型

• 2 × RS232/485，1 × 音频线路输出

• 1 x 2 针连接器，用于开关电源

• Windows 10 物联网企业操作系统

•

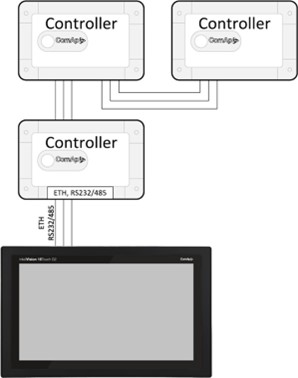

应用概览



Technical data

Power supply


Power Supply Range	9-36 V DC
Power Consumption	9 V / 6.5 A

Operating conditions

Operating Temperature	-20 °C to 60 °C
Storage Temperature	-30 °C to 70 °C
Humidity	10 to 90%@ 40˚C (non-condensing)

Interfaces


USB	2 x USB 3.0 type A
Serial / Parallel	1 x DB-9 RS-232/422/485, COM1 (Default RS-232) 1 x RS-232 DB-9, COM2
Audio	1 x Audio Line Out
LAN	2 x GbE LAN RJ-45
Power	1 x 3-pin DC power input terminal, 1 x 2-pin connector for power on/off

System


CPU	Onboard 6th Gen. Intel Core i3-6100 Processor
Memory	8GB DDR4 SO-DIMM 3200 MHz CL22
System Chipset	SoC
Storage Device	80GB 2.5'' SATA SSD 3IE6-P iSLC AES

LCD specification


LCD panel	18.5” TFT-LCD
Resolution	1920 x 1080 px
Max. Color	16.7M
Luminance	350 cd/m2
Contrast Ratio	1000 : 1
View Angle	178(H) / 178(V)
Backlight Lifetime	40,000 hrs

Touchscreen


Type	Projected Capacitive Touch
Light Transmission	Projected Capacitive Touch: over 90%

Mechanical


Housing	IP66 Compliant Front Bezel
Color	RAL 7021
Construction	Aluminum die-casting chassis
Net Weight	6 kg
Dimensions (W × H × D)	499.6 x 314.6 x 65.4 mm
Mounting	Panel Mount, VESA 100 x 100

Operating system

OS	Windows® 10 IoT Enterprise

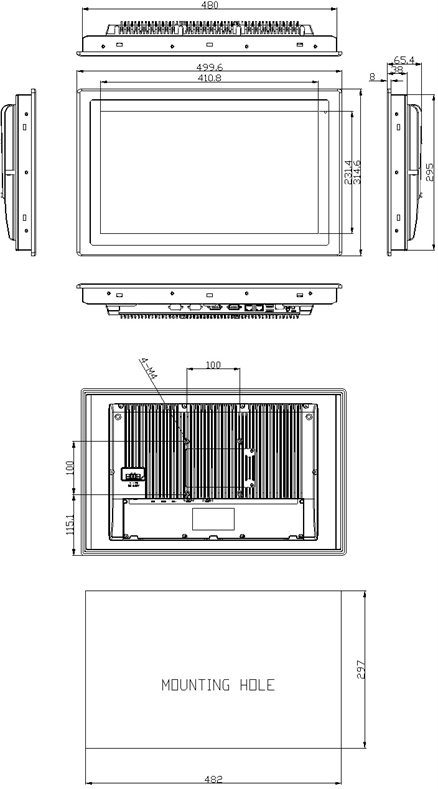

Dimensions, terminals and mounting

Related products



Product	Description
InteliSCADA	The new monitoring tool for the new and current controllers


For a list of compatible products see the Supported ComAp Devices chapter in the InteliSCADA Global Guide.
