具有异步交流发电机的热电联产

异步发电机发电机组的热能和电能联合生产。

降低低发动机停机时间 将所有发动机组件集成到一个地方有助于减少热电联产的停机时间
并网时间短 预编程功能和大型内置PLC解释器缩短了并网时间
设计在你的手中 自行设计独特的功能和布局,无需任何额外费用

情况

火花点燃的燃气发动机驱动产生电能的三相异步发电机。 热回收系统从发动机冷却系统和烟气系统产生热能。 这种类型的电能和热能是使用化石燃料或可再生燃料的最有效方式之一。 异步交流发电机由于其简单,易于连接到网络和较低的成本而被大量使用,特别是在较低的功率范围内,大约为10s的功率。

ComAp解决方案

科迈InteliSysNTC BaseBox和InteliGenNTC BaseBox控制器为使用异步交流发电机的小型CHP提供了完美的解决方案。 异步应用专用固件负责发电机组的启动和与网络的无缝连接。 InteliGenNTC BaseBox控制器为较小的设备提供了经济高效的解决方案,而InteliSysNTC BaseBox凭借其内置的PLC解释器在热电联产控制方面提供了高度的灵活性。

整个场地可以通过各种操作面板进行监控,从成本效益高的5英寸屏幕开始,到单台发电机组的12英寸触摸屏和完整现场监控的17英寸触摸屏面板。

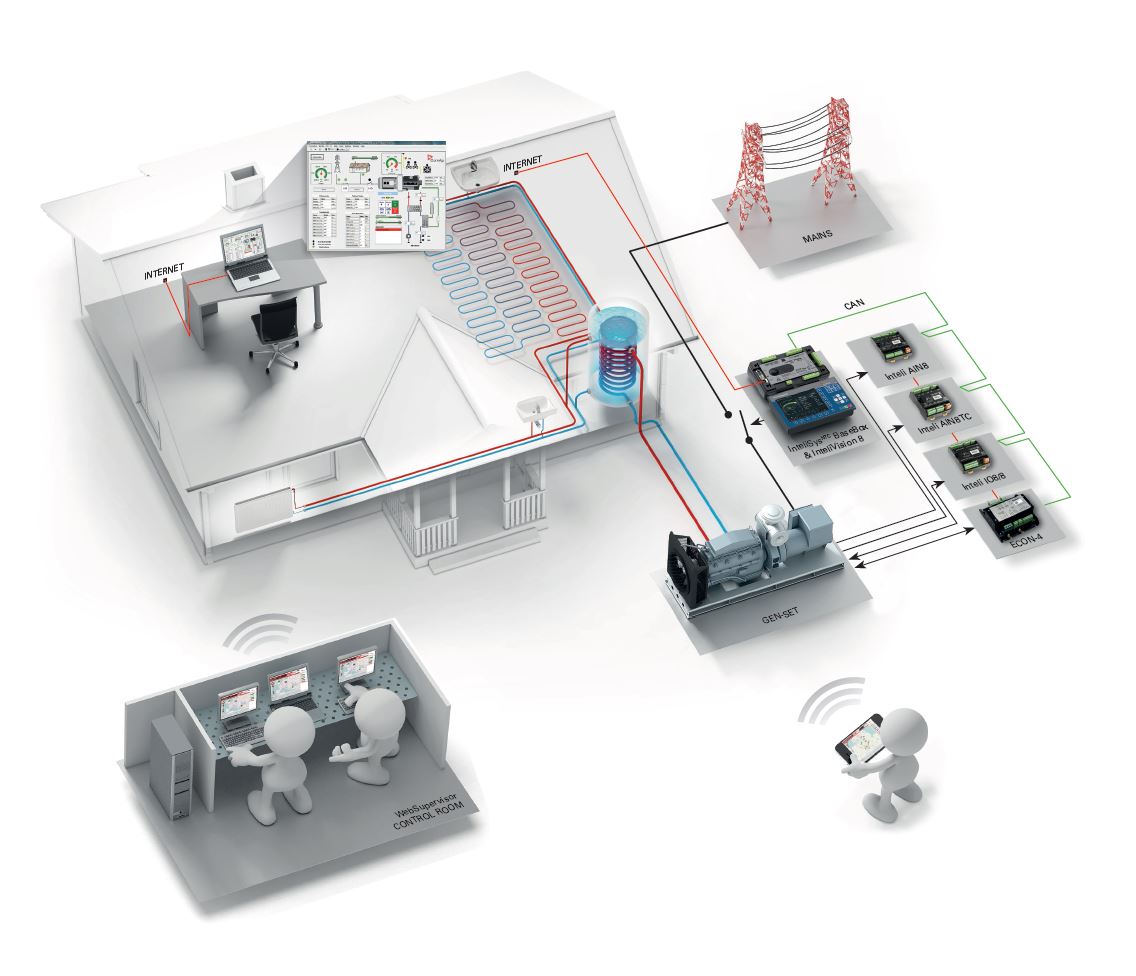

具有异步交流发电机的热电联产
  1. InteliGenNTC BaseBox or InteliSysNTC BaseBox represents the heart of the control system, integrating control functions of engine, alternator and CHP.
  2. ECON-4 serves for speed and load control of gas gen-set.
  3. Inteli AIN8, Inteli AIN8TC, Inteli IO8/8 are peripheral I/O modules which measure signals from the engine like cylinder temperatures, oil pressure, water temperatures and communicate the values to the InteliSys Gas over communication line. Distributed control system allows local placement of the I/O modules hence easier wiring and shorter commissioning time.
  4. InteliVision 8 is 8-inch colour operator panel, dedicated for local system overview and control.
  5. Remote monitoring of the whole CHP plant is possible over WebSupervisor tool or InteliMonitor PC tool when a detail monitoring is needed. Websupersvisor is also available through Android and iOS apps.
