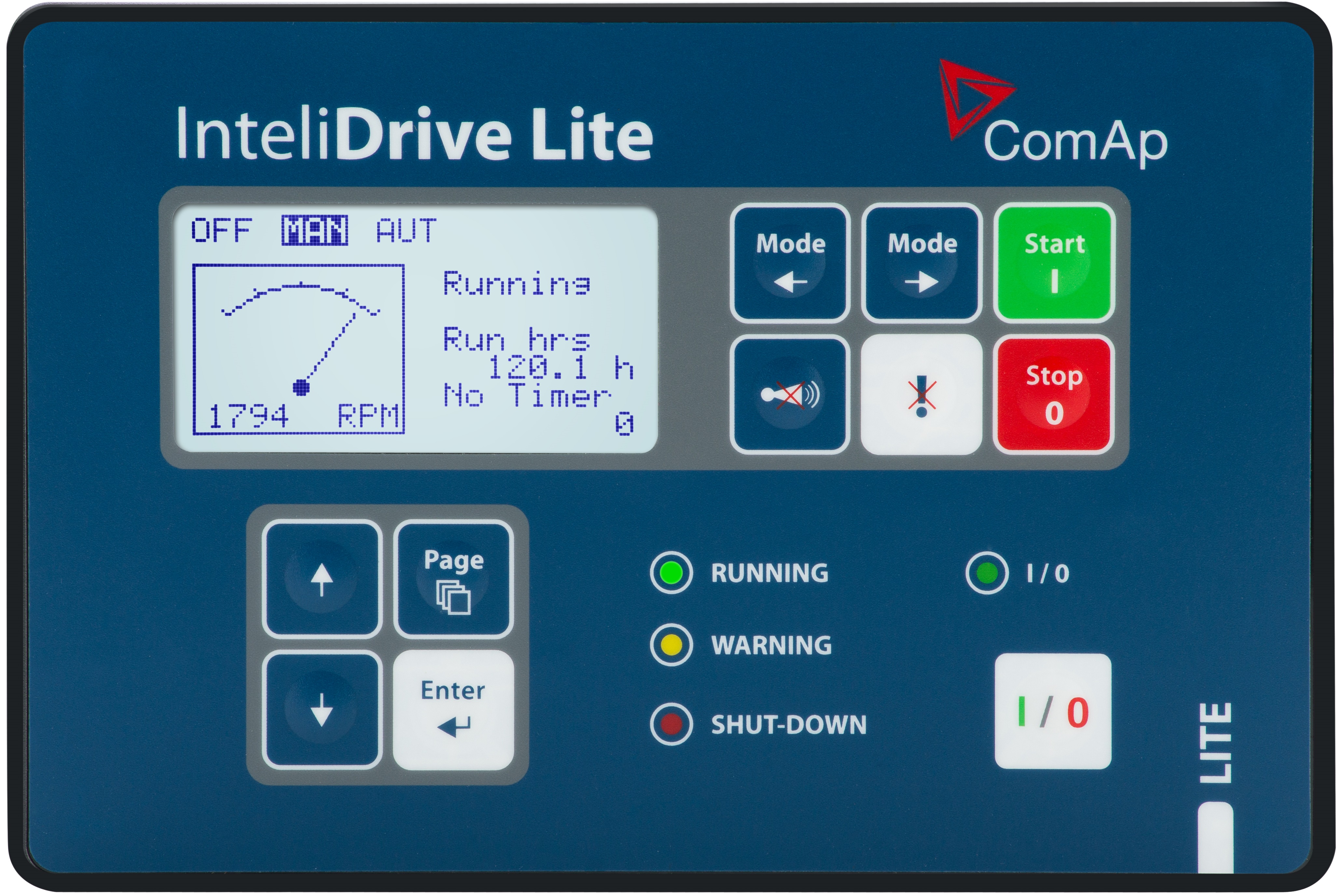

InteliDrive Lite

Engine Controller for Pumps and Compressors

产品型号: ID-FLX-LITE

Engine controller for land-based and marine Tier4 applications
Control, monitoring and protection for both mechanical and electronic diesel/gas engines in one unit
Automatic or manual start/stop of the engine
Programmable On/Off panel button
Support of engines with Electronic Control Unit (ECU) - J1939 or Cummins Modbus
Analog gauge (VDO, Datcon and others) outputs – operator friendly
Smooth engine speed control
7 configurable binary inputs
7 configurable binary outputs
7 configurable analog inputs (3 resistive, 4 voltage) + 2 not configurable voltage inputs
Selectable protections alarm/shutdown
3 level of password protection
USB, RS485/RS232/Modem/Modbus communication
Automatic SMS on alarm
On-line control and monitoring over web pages (embedded web server) via IB-Lite
Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS
AirGate support
2 languages (user changeable)
Real time clock and event history log
PLC functions: PID loop, Comparators, Timers
Push buttons for simple control, lamp test
Front panel sealed to IP65
EN, UL certifications
