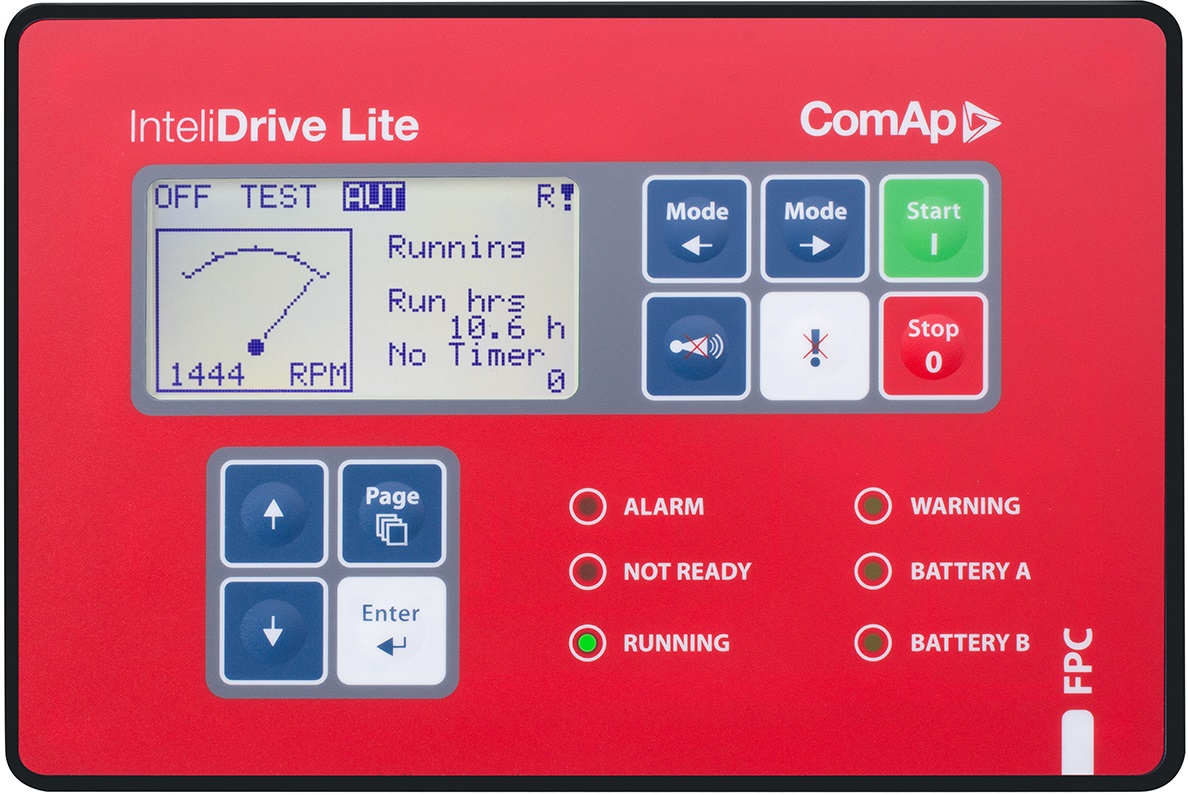

InteliDrive Lite FPC

Engine Controller Designed for Diesel Driven Fire Pump Applications
产品型号: ID-FLX FPC
询问更多信息 现在

  • Modular engine controller designed for diesel driven fire pump applications based on the NFPA 20 standard
  • Automatic and manual starting sequence based on two batteries according to NFPA 20 standard
  • Support of engines equipped with Electronic Control Unit (ECU) - J1939 or Cummins Modbus interface
  • Analog gauge (VDO, Datcon) outputs – operator friendly
  • Engine speed control
  • 3 configurable analog inputs + 2 analog inputs of battery voltage measurement
  • 7 configurable binary inputs and outputs
  • 6 LED indicators (Alarm, Warning, Not Ready, Running, Battery A, Battery B)
  • Selectable protections alarm/shutdown
  • 1 level of password protection
  • USB, RS485/RS232/Modem/Modbus communication
  • Automatic SMS on alarm
  • On-line control and monitoring over web pages (embedded web server) via IB-Lite
  • 2 languages (user changeable)
  • Real time clock and event history log
  • Push buttons for simple control, lamp test
  • Front panel sealed to IP65
  • Based on the NFPA20 standards
  • EN certification
  • Comparator with hysteresis regulation


Callcentre girl
联系ComAp中国 +86 21 62161272 WeChatQR
用户友好型 易于安装,设置和使用。
应用程序 控制器专为特定应用而设计
Monitoring Easy remote control and monitoring.


'我们决定使用 InteliDrive Lite FPC 对于我们的消防泵系统,由于控制器提供了许多优点。 InteliDrive Lite FPC非常友好且易于使用,易于使用和简单适应。 除了多功能性和自动/手动启动顺序外,该设计还符合NFPA 20标准,使整个系统高度可靠,让我们完全放心。'

Mauricio Batyk 维护经理
