Inteli IO8/8

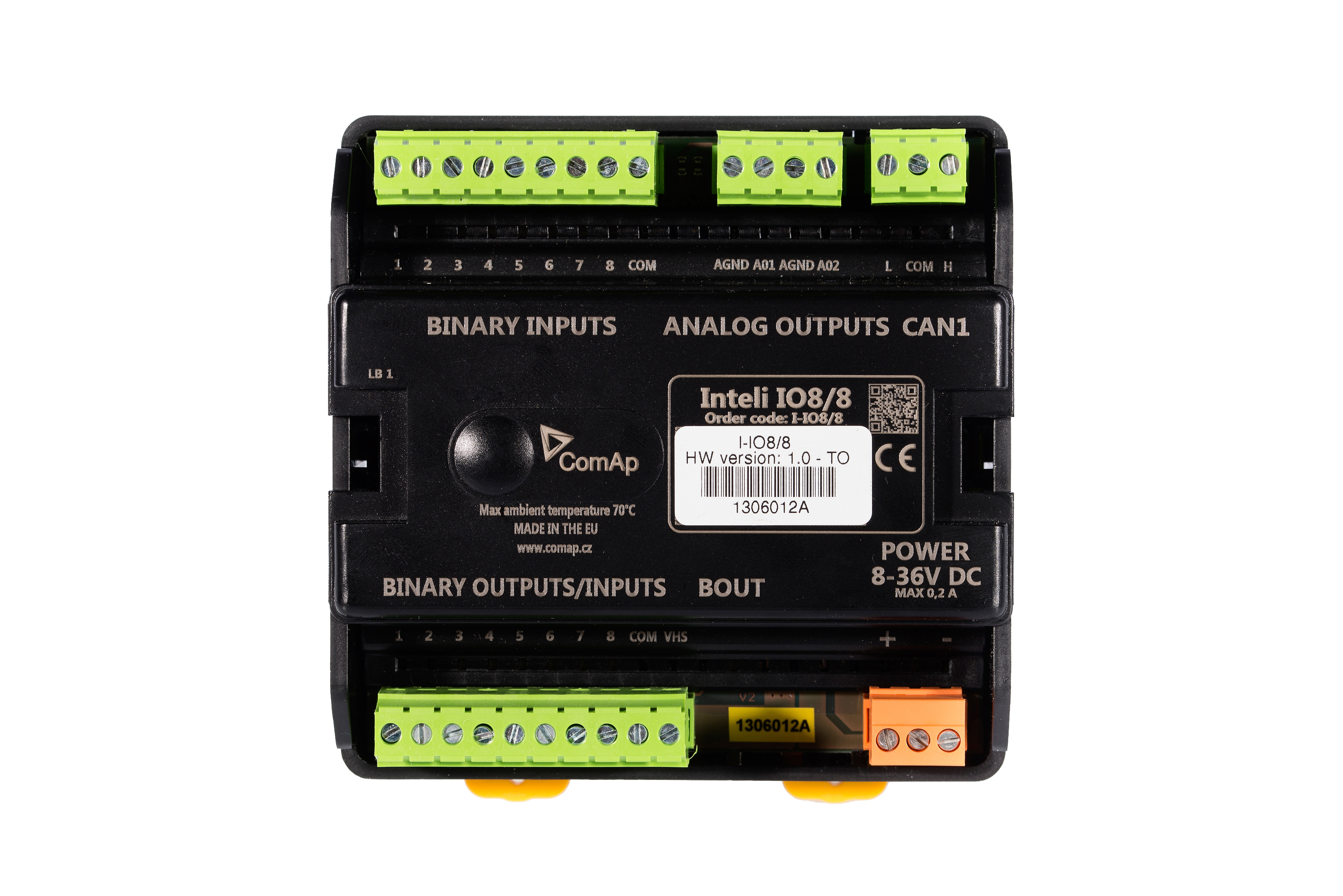

The extension module Inteli IO8/8 offers users more binary inputs and outputs for ComAp controllers. The unit offers the user the flexibility to configure the unit to have 8 binary inputs, 8 binary outputs, and 2 analog outputs, or 16 binary inputs, 0 binary outputs and 2 analog outputs via switches inside the controller. The Inteli IO8/8 is compatible with the InteliDrive DCU, InteliMains NT, InteliGen NT and InteliSys NT ranges of controllers.

Module is possible to configure (by switch on board) to two configurations:


1) Configuration 8/8

• 8 Binary inputs (options: pull up or pull down logic)
• 8 Binary outputs (options: Low side switch (LSS) or High side switch (HSS))
• 2 Analog outputs (options: voltage (0-10V), current (0-20mA) and PWM (5V, adjustable frequency 200Hz-2,4kHz))

2) Configuration 16/0

• 16 Binary inputs (options: pull up or pull down)
• 0 Binary outputs
• 2 Analog outputs (options: voltage (0-10V), current (0-20mA) and PWM (5V, adjustable frequency 200Hz-2,4kHz))

• Up to 12 Inteli IO8/8 module (in configuration 8/8) can be connected to the controller (InteliSys NT / InteliGen NT / InteliMains NT)
• Up to  6  Inteli IO8/8 module (in configuration 16/0) can be connected to the controller (InteliSys NT / InteliGen NT / InteliMains NT)
• Up to  4  Inteli IO8/8 (in configuration 8/8) can be connected to the InteliDrive DCU controller.
• LED indication of each Binary input/output
• Safety function of Binary output: Regular reading of the real state of the Binary output
• All settings are carried onboard switch or electronically (No jumpers)
