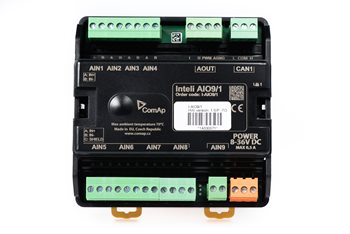

Inteli AIO9/1

Analog Input Output Module
产品型号: I-AIO9/1
询问更多信息 现在

ComAp’s Inteli AIO9/1 module is designed for applications where DC measurement of current and voltage is necessary – such as Telecom or Hybrid applications.

Module is equipped with:

Analog inputs:

  • 4 channels for differential voltage measurement: range ±65V DC (for example battery voltage measurement)
  • 4 channel equipment sensors: thermocouples J,K,L , ±75mV (for current measurement via resistor shunts
  • 1 channel for resistance measurement 0-2400Ω (sensors: 0-2400Ω, PT1000 or NI1000)

Analog output:

  • analog output with options : 0-20mA, 0-10V or PWM

Currently this module is supported in the software IGS-NT 3.1.1, IM-NT 3.1.1 or higher,. Information about support in other IGS-NT software branches – please read New features list. Support in InteliDrive DCU controllers will be released later.
