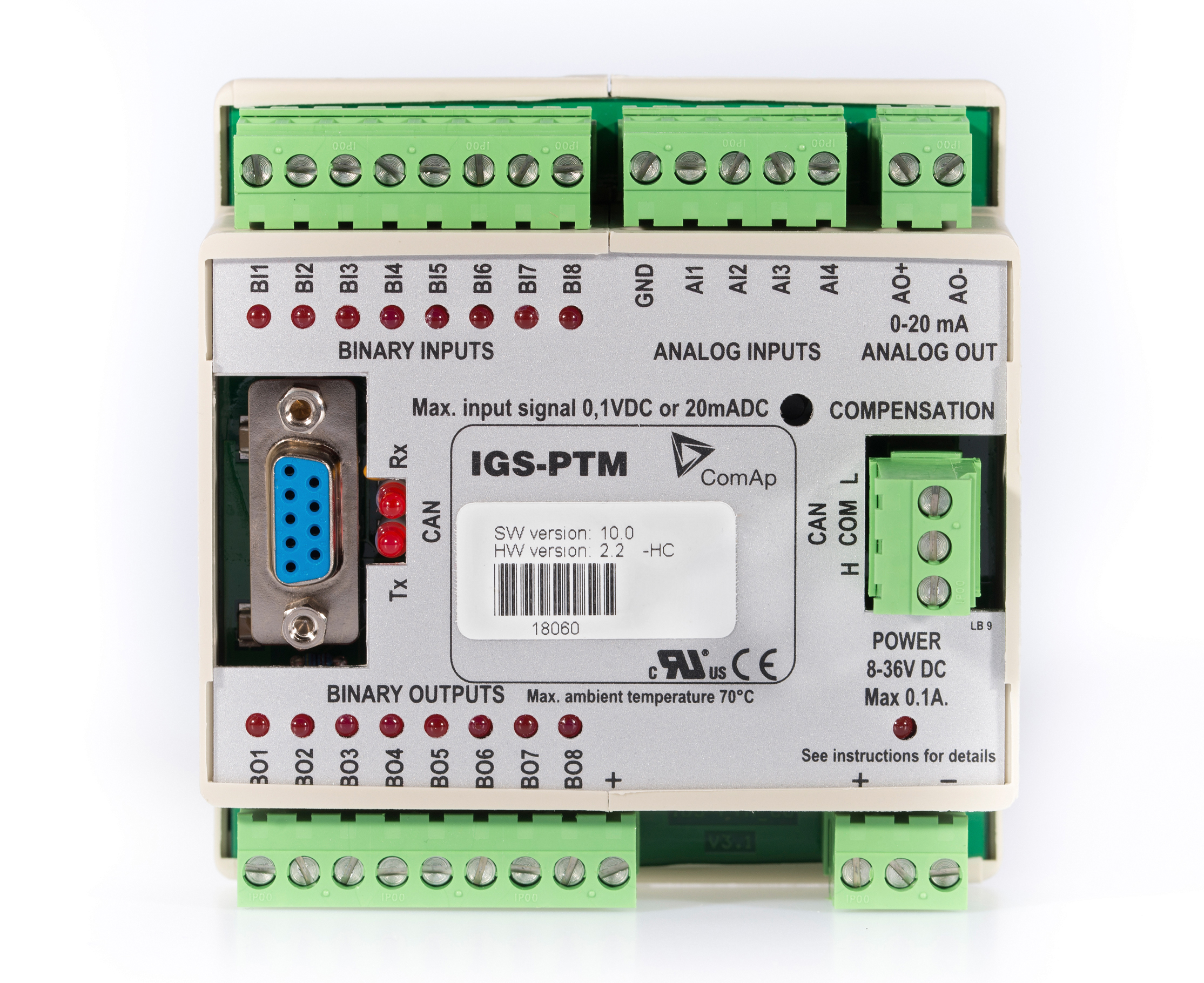

IGS-PTM

Analog/Binary Input/Output Module
产品型号: IGS-PTM
询问更多信息 现在



  • Configurable 8 binary and 4 analog inputs
  • Configurable 8 binary and 1 analog output
  • LEDs indicate the state of binary inputs/outputs
  • Measures values from Pt100 and Ni100 sensors
  • Analog inputs (resistance range 0-250 Ohms, voltage range 0-100mV, current range 0-20mA - selectable via jumper)
  • Up to 4 IGS-PTM can be connected to the controller
  • UL certified
